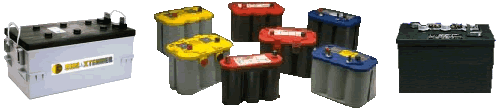

1) RV / Marine / Golf Cart :  RV or Marine type deep cycle batteries are basically for boats & campers and are suitable for only very small systems.  They can be used but do not really have the capacity for continous service with many charge/discharge cycles for many years.  Regular or Car type batteries should not be used at all because they cannot be discharged very much without internal damage.  A very popular battery for small systems is the Golf Cart battery.  They are somewhat more expensive than deep cycle recreational batteries but are probably the least expensive choice for a small system on a budget.

2) Flooded types :  These are Lead acid batteries that have caps to add water. Many manufacturers make these types for Solar Energy use.  They are reasonably priced and work well for many years.  All flooded batteries release gas when charged and should not be used indoors.  If installed in an enclosure, a venting system should be used to vent out the gases which can be explosive.

3) Gel :  Not to be confused with maintenance free batteries, sealed gel batteries have no vents and will not release gas during the charging process like flooded batteries do.  Venting is therefore not required and they can be used indoors.  This is a big advantage because it allows the batteries to maintain a more constant temperature and perform better.

4) AGM :  Absorbed Glass Mat batteries are in our opinion the best available for Solar Power use. A woven glass mat is used between the plates to hold the electrolyte.   They are leak/spill proof, do not out gas when charging, and have superior performance.  They have all the advantages of the sealed gel types and are higher quality, maintain voltage better, self discharge slower, and last longer.  They are more expensive, but you usually get what you pay for.  You will find this type of battery used in airplanes, hospitals, and remote telephone/cell tower installations.

SC Origin partners with battery producers to custom made our solar battery and please kindly contact us for different sizes and pricing of our solar SLA, AGM and Deep Cycle batteries.  Please contact at sales@scorigin.com

Item   Code                 Capacity & Type                 Retail Price RM (US$)

1. SC004SB           4.5AH, 6V, SLA                    RM27.00          US$9.00

2. SC007SB           7.2AH, 12V, SLA                  RM63.00          US$21.00

3. SC012SB           12AH, 12V, AGM                  RM110.00        US$36.70

4. SC018SB           18AH, 12V, AGM                  RM153.00        US$51.00

5. SC026SB           26AH, 12V AGM                   RM205.00        US$68.30

6. SC040SB           40AH, 12V, AGM                  RM357.00        US$119.00

7. SC100SB           100AH, 12V, AGM                RM772.00        US$257.40


           SLA AGM Battery Datasheet (Please double click)

Solar Deep Cycle Battery

1. SC100DC           100AH, 12V, Deep Cycle       Please Call
2. SC200DC           200AH, 12V  Deep Cycle       Please Call


We also custom made other Ampere Hour solar batteries (SLA & Gel), please kindly contact us for more detail.

Note: Our deep cycle solar battery are custom made and the deliver lead time is 4-6 weeks after accepted full payment.

Why do I need one?

A charge controller, or charge regulator is similar to the voltage regulator in your car.   It regulates the voltage and current coming from the solar panels going to the battery. Most "12 volt" panels put out about 16 to 20 volts, so if there is no regulation the batteries will be damaged from overcharging.  Most batteries need around 14 to 14.5 volts to get fully charged.

Why 12 Volt Panels are 17 Volts?

The obvious question then comes up - "why aren't panels just made to put out 12 volts".  The reason is that if you do that, the panels will provide power only when cool, under perfect conditions, and full sun.  This is not something you can count on in most places.  The panels need to provide some extra voltage so that when the sun is low in the sky, or you have heavy haze, cloud cover, or high temperatures*, you still get some output from the panel.  A fully charged battery is around 12.7 volts at rest (around 13.6 under charge), so the panel has to put out at least that much under worst case conditions.

Charge controls come in 3 general types:

Simple 1 or 2 stage controls which rely on relays or shunt transistors to control the voltage in one or two steps.  These essentially just short or disconnect the solar panel when a certain voltage is reached.  For all practical purposes these are dinosaurs, but you still see a few on old systems.  Their only real claim to fame is their reliability - they have so few components, there is not much to break.

3-stage and/or PWM  Quite a few charge controls have a "PWM" mode.  PWM stands for Pulse Width Modulation.  PWM is often used as one method of float charging. Instead of a steady output from the controller, it sends out a series of short charging pulses to the battery - a very rapid "on-off" switch.  The controller constantly checks the state of the battery to determine how fast to send pulses, and how long (wide) the pulses will be.  In a fully charged battery with no load, it may just "tick" every few seconds and send a short pulse to the battery. In a discharged battery, the pulses would be very long and almost continuous, or the controller may go into "full on" mode.  The controller checks the state of charge on the battery between pulses and adjusts itself each time.

Maximum power point tracking (MPPT), These are the ultimate in controllers, with prices to match - but with efficiencies in the 94% to 98% range, they can save considerable money on larger systems since they provide 15 to 30% more power to the battery.  The MPPT controllers are even better. They match the output of the solar panels to the battery voltage to insure maximum charge (amps).  For example: even though your solar panel is rated at 100 watts, you won't get the full 100 watts unless the battery is at optimum voltage.  The Power/Watts is always equal to Volts times Amps or P=E*I (see Ohm's law for more info).  With a regular charge controller, if your batteries are low at say 12.4 volts, then your 100 watt solar panel rated at 6 amps at 16.5 volts (6 amps times 16.5 volts = 100 watts) will only charge at 6 amps times 12.4 volts or just 75 watts.  You just lost 25% of your capacity!  The MPPT controller compensates for the lower battery voltage by delivering closer to 8 amps into the 12.4 volt battery maintaining the full power of the 100 watt solar panel! 100 watts = 12.4 volts times 8 amps = 100 (P=E*I).

 Most controllers come with some kind of indicator, either a simple LED, a series of LED's, or digital meters. Some newer ones have built in computer interfaces for monitoring and control.  The simplest usually have only a couple of small LED lamps, which show that you have power and that you are getting some kind of charge.  Most of those with meters will show both voltage and the current coming from the panels and the battery voltage.  Some also show how much current is being pulled from the LOAD terminals.

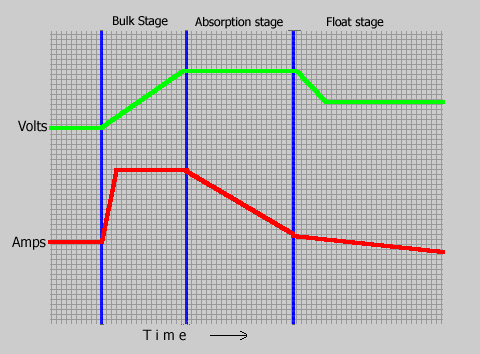

BULK :  During the Bulk phase of the charge cycle, the voltage gradually rises to the Bulk level (usually 14.4 to 14.6 volts) while the batteries draw maximum current. When Bulk level voltage is reached the absorption stage begins.

ABSORPTION :  During this phase the voltage is maintained at Bulk voltage level for a specified time (usually an hour) while the current gradually tapers off as the batteries charge up.

FLOAT :  After the absorption time passes the voltage is lowered to float level (usually 13.4 to 13.7 volts) and the batteries draw a small maintenance current until the next cycle.

SC Origin represents many industry standard solar charge controllers and please kindly talk to our sales advisor for suitable charger controller and budget.  Please contact at sales@scorigin.com

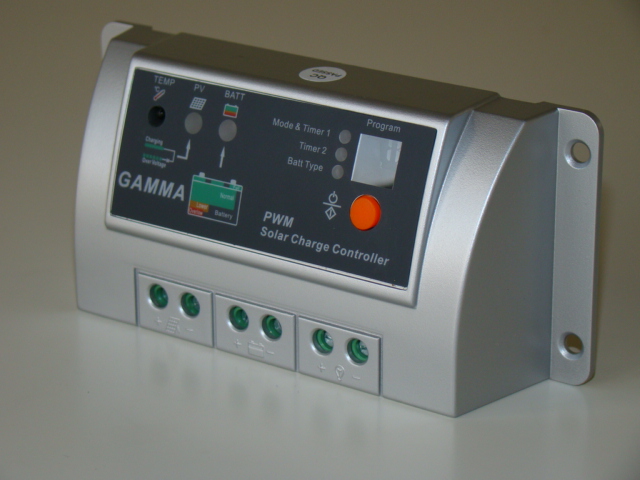

GAMMA 2.0 SOLAR CHARGE CONTROLLER (3A, 5A or 10A)

RM58   -   3A                                      US$23.20

RM88   -   5A                                                US$35.20

RM118 -  10A                                              US$47.20

Our latest version 3A, 5A & 10A automatic 12V/24V GAMMA 2.0 Solar Charge Controller series are especially designed for reliability and affordability.  It is perfect for small & medium solar systems with the need of a multi functions and programing features.

Support On Grid (grid-tie) solar panel with a maximum PV voltage input of 50V.

Selectable battery types: Gel, Sealed (AGM) and Flooded battery options.

The GAMMA regulation circuit provides series regulation to prevent single cell overheat problems of short-circuited solar panels.  The terminal section has been replaced by a rugged, well profane 6mm square terminal block.

The melting fuse of the predecessor has been replaced by a fully electronically protected circuit.

With digital display and 5 LED indicators to display charging in progress, battery SOC, load disconnect, overload status and more.

Leisure and rural electrification systems are the typical applications for this product. It is a perfect solution for cost-sensitive systems which require state-of- the-art system management.

Key Features and Benefits

• 3A for 30Wp solar array, 5A for 60Wp solar array & 10A for 120Wp solar array
• 12V / 24V automatic recognition
• Supporting On Grid (Grid-Tie) solar panel with a maximum PV input of 50V
• High efficient series PWM charging regulation
• Electronically regulated charging regime: Boost and float charge
• Deep discharge protection
• Integrated temperature compensation
• Uses MOSFET as electronic switch and reverse blocking
• Fully electronically protected: panel surge voltage, wrong polarity at panel or battery, overload and short circuit at load and more
• Digital Display and 5 LED indications: Program, Charge status,SOC, LVD, Overload/Short Circuit
• On & off switch for load
• Special programing and setting for load
• Intelligent dual timer function and 1-15 hours timers
• Selectable Gel, Sealed and Flooded battery type options
• Inbedded desulfator function from PWM technology
• 6mm square terminal block
• Common positive allows grounding
• Certifications: ISO9001, CE

Download: User Manual & Datasheet (Please click to download)

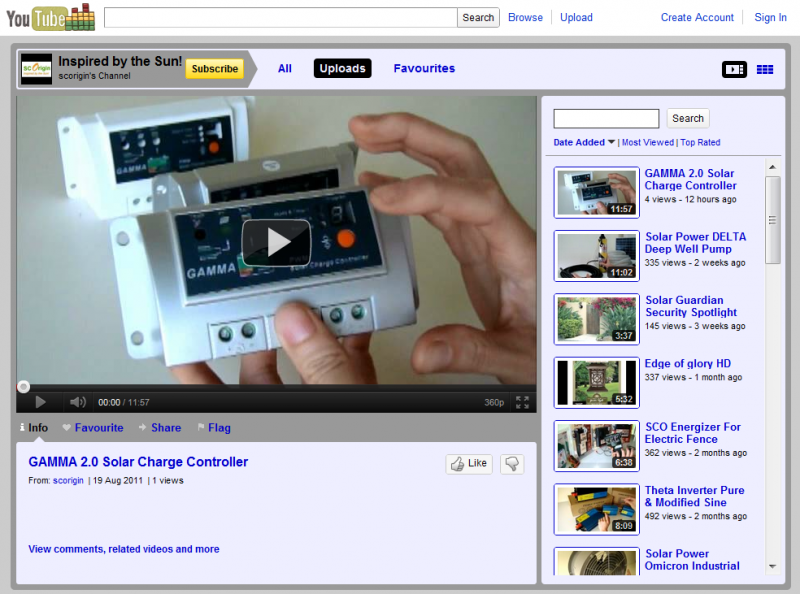

  Watch GAMMA 2.0 YouTube Video

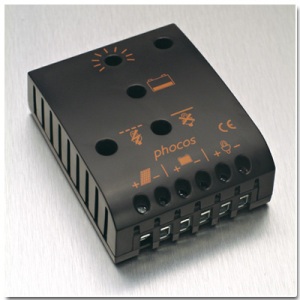

PHOCOS SOLAR CHARGE CONTROLLER (CA06)

RM98                              US$29.70

The new version of CA solar charge controller series is especially designed for small solar systems with the need of a low battery disconnect feature.

Main differences to the preceding CA series: The regulation circuit provides now series regulation to prevent single cell overheat problems of short-circuited solar panels. The terminal section has been replaced by a rugged, well profane 16mm² terminal block.

The melting fuse of the predecessor has been replaced by a fully electronically protected circuit.

2 LEDs and 1 Duo-LED to display charging in progress, battery SOC, load disconnect and overload status.

Leisure and rural electrification systems are the typical applications for this product. It is a perfect solution for cost-sensitive systems which require state-of- the-art system management.

Key Features and Benefits

• Electronically regulated charging regime: Boost and float charge
• Deep discharge protection
• PWM series regulation, no panel short circuit
• Integrated temperature compensation
• Reverse blocking Mosfet
• Fully electronically protected: panel surge voltage, Wrong polarity at panel or battery, Overload and short circuit at load
• 4 LED indications: Charge status,SOC, LVD, Overload/Short Circuit
• Common positive allows grounding
• Certifications: CE

Download: Datasheet and User Manual (Please click to download)

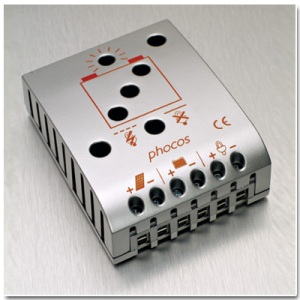

PHOCOS SOLAR CHARGE CONTROLLER (CML20)

RM348                              US$111.95

The CML series is a sophisticated solar charge controller family for low-cost applications.  The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.

The temperature-compensated three-stage PWM charging method (boost-equalization-float) is now adjustable to sealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs.  As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature.

Key Features and Benefits

• Battery State-of-Charge display with 3 LEDs
• Acoustic load disconnect pre-warning
• PWM-regulation (series type)
• Boost, Equalize and Float charging, also for VRLA
• Automatic 12/24 Volt detection
• Integrated temperature compensation
• Large terminals (up to 16mm² wire size)
• SOC and voltage controlled LVD
• Fully electronically protected
• Certifications: CE,

Donwload: Datasheet and User Manual (Please click to download)


MORNINGSTAR SOLAR CHARGE CONTROLLER (SHS-6)

RM148                              US$48.50

Morningstar's well-known high-quality and reliability is now available in a low cost solar controller. The SHS Controller is ideal for rural electrification systems with one to three solar panels.

Designed for SHS projects in Africa, Asia and Latin America.

Key Features and Benefits

• Low Cost

• High Reliability

• Complete Electronic Protections

• Tropicalization

• Easy to Use

• Provides Controller and Battery Information

• Better Battery Charging

• High Quality Automated Production

• Meets International Testing Standards

• Multi-language Documentation
• Certifications: CE, World Bank specification
• 5 Year Warranty


Donwload: Datasheet and User Manual (Please click to download)

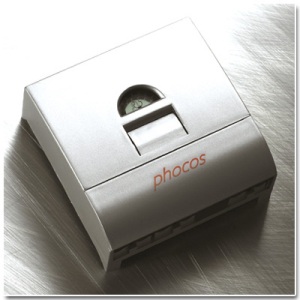

The CX series is a sophisticated solar charge controller family with exceptional features for its price range. Beside a perfect PWM regulation with integrated temperature compensation the controllers provide extraordinary display, programming and safety functions.

The battery state of charge is clearly displayed with a bar chart, as well as energy flows from and to the battery and the load status (e.g. overload, load short circuit). The deep discharge protection function can be set up to three different modes: voltage controlled, SOC controlled or adaptive (fuzzy logic).

Acoustic warnings are built in, and also a programmable nightlight function.

As an accessory we can provide an Excess Energy Management output to control special Phocos appliances like the SF solar refrigerators/coolers.

The compact case design is prepared for DIN rail mounting (mounting device available as an accessory).

Key Features and Benefits

• Battery State-of-Charge display LCD Charge and discharge status display
• Acoustic load disconnect pre-warning
• Load status indication
• Choose between 5 load disconnect algorithms
• boost/absorption/float PWM-regulation (series type)
• Integrated temperature compensation
• Covered terminals(up to 16mm² wire size)
• Full solid-state protection
• Certifications: CE

 Download: Datasheet and User Manual (Please click to download)

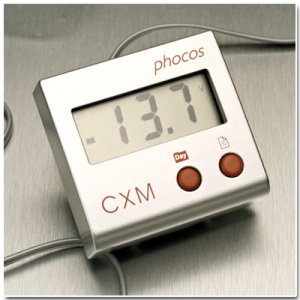

PHOCOS REMOTE DISPLAY (CXM) FOR CX SOLAR CONTROLLER
RM168                                                                              US$53.95

Phocos' CXM can be used in combination with Phocos CXN series charge controllers via interface connector.

Phocos' CXM remote display is designed to display panel current, load current and battery voltage of your PV system as true values and status values like charging, overload, low voltage disconnect as symbols. Additional you can display several values of CXN's data logger of the past 7 days as Ah, SOC, Battery voltage (morning, evening).

This provides you more detailed information of your PV system.

Key Features and Benefits

• Display panel current, load current, and battery voltage, Ah, SOC, etc
• Clear, readable 3-digit LCD Display and symbols
• Two push button to select displayed value
• Prepared for DIN rail and wall mounting

Download: Datasheet and User Manual (Please click to download)

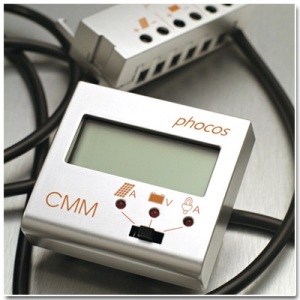

Phocos' CMM multi-meter is designed to accurately measure and the display panel current, load current and battery voltage of your PV system.

CMM can be used in combination with Phocos CA, CML and CMLNL series charge controllers.

Download: Datasheet and User Manual (Please click)

Key Features and Benefits

• Measuring and display panel current, load current and battery voltage.
• Clear, readable 3-digit LCD Display
• 3-position switch to select which value to be displayed
• 3LEDs to show which value is displayed by LCD
• Prepared for DIN rail and wall mounting

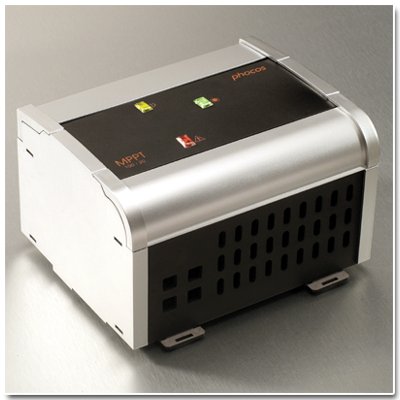

With innovative maximum-power-tracking technology, Phocos' MPP-Tracker ensures maximum performance from your solar array at all times and in all weather conditions. The MPPT can yield an energy gain of up to 30% from your PV array (with the average gain being 10%-25%).

MPPT includes a sweep-function which runs through the whole solar-panel voltage range once every 2h to find the point of the absolute maximum power output

The temperature-compensated three-stage I-U curve charge regulation alogarithm significantly extends the lifespan of your battery.

The possibility to use less expensive grid-feed-in solar-panels with up to 95V open circuit voltage for 12V or 24V stand-alone systems will significantly reduce the cost of the total system.

Key Features and Benefits

• increases the efficiency of your PV system
• Less expensive solar-panels for grid-feed-in systems can now be used for 12/24V off-grid systems
• Electronic protection (reverse polarity, over-current, short-circuit, over-temperature)
• High efficiency
• DIN Rail compatible
• Negative ground
• Certifications: CE

Download: Datasheet and User Manual (Please click to download)

More choices of solar charge controllers, please kindly see Solar Power Mart

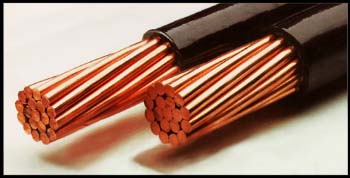

In order for the energy from your Solar Panels to reach your Battery Bank without serious loss of power, you will need to calculate the proper size of wires to use. Just like water in a pipe, the smaller the pipe, the less water that can pass through it.   Please kindly consult us on the right solar wire to use.

We provide all kind of solar wire, cable, battery & panel interconnect, battery interconnect cables, inverter cables, and others.
